Current Position：Home ProductsEnergy Storage

ESS Cell
ESS Pack
ESS System

ESS Cell

Energy Density165Wh/kg

Cycle Life6000cycles

Dimension (W*D*H)39*148*113mm

Charge/Discharge Rate0.5C/0.5C

ESS Cell

Energy Density143Wh/kg

Cycle Life2000cycles

Dimension (W*D*H)50*160*118mm

Charge/Discharge Rate1C/1C

ESS Cell

Energy Density168Wh/kg

Cycle Life6000cycles

Dimension (W*D*H)50*160*118mm

Charge/Discharge Rate0.5C/0.5C

ESS Cell

Energy Density176Wh/kg

Cycle Life8000cycles

Dimension (W*D*H)71*173*207mm

Charge/Discharge Rate0.5P/0.5P

ESS Cell

Energy Density173Wh/kg

Cycle Life7000cycles

Dimension (W*D*H)71*173*207mm

Charge/Discharge Rate1P/1P

ESS Cell

Energy Density 186Wh/kg

Cycle Life8000cycles

Dimension (W*D*H)73*288*216mm

Charge/Discharge Rate0.5P/0.5P

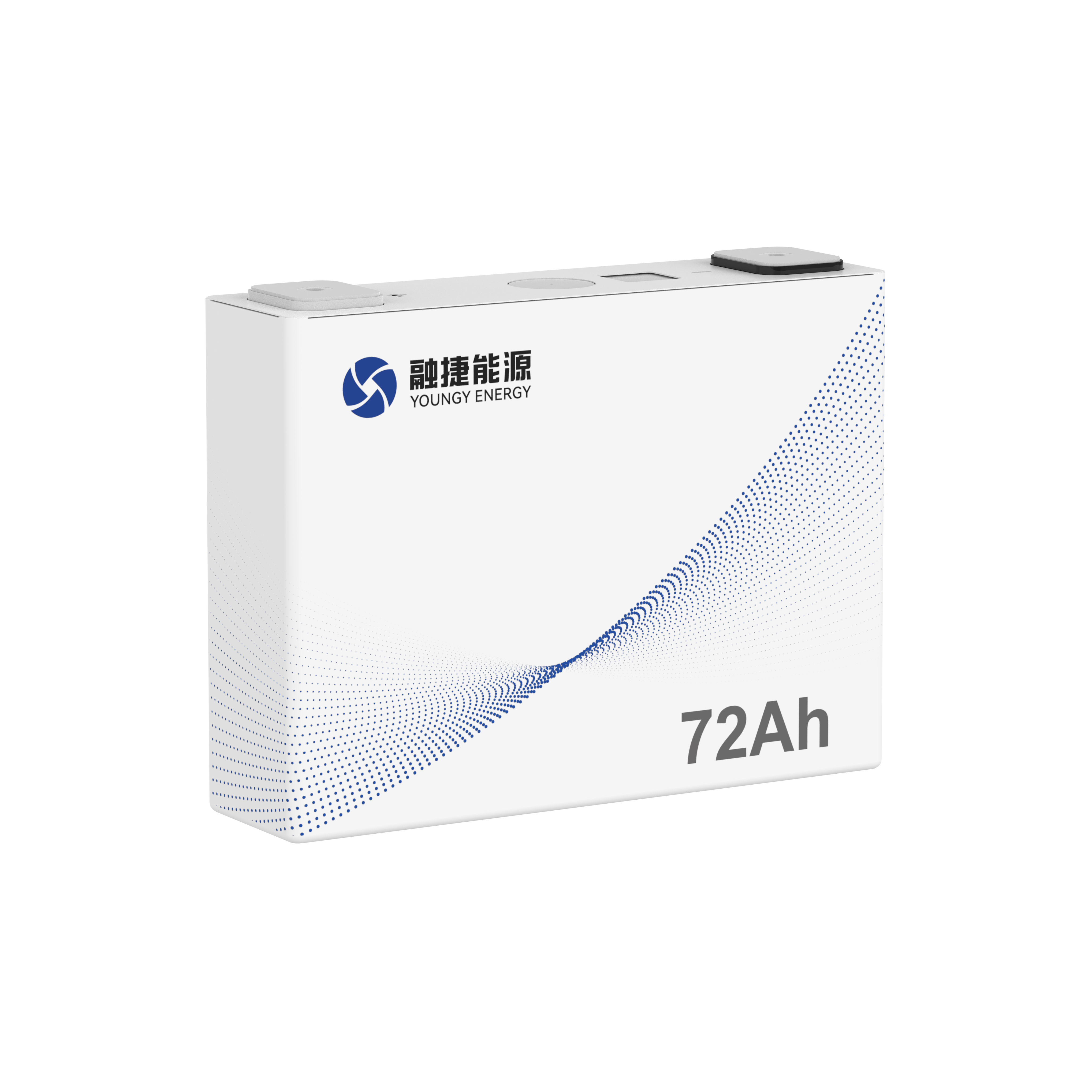

LFP72Ah

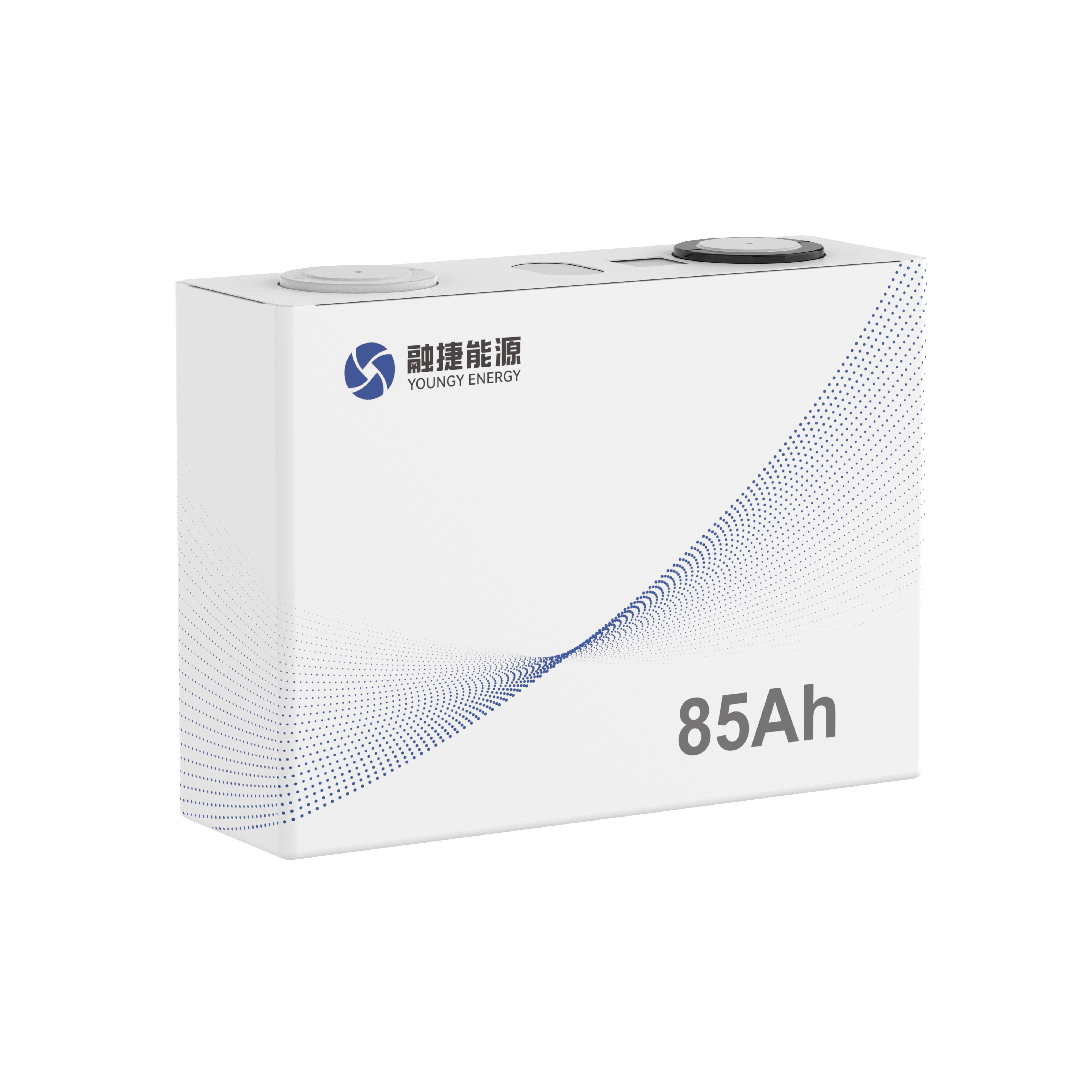

LFP85Ah

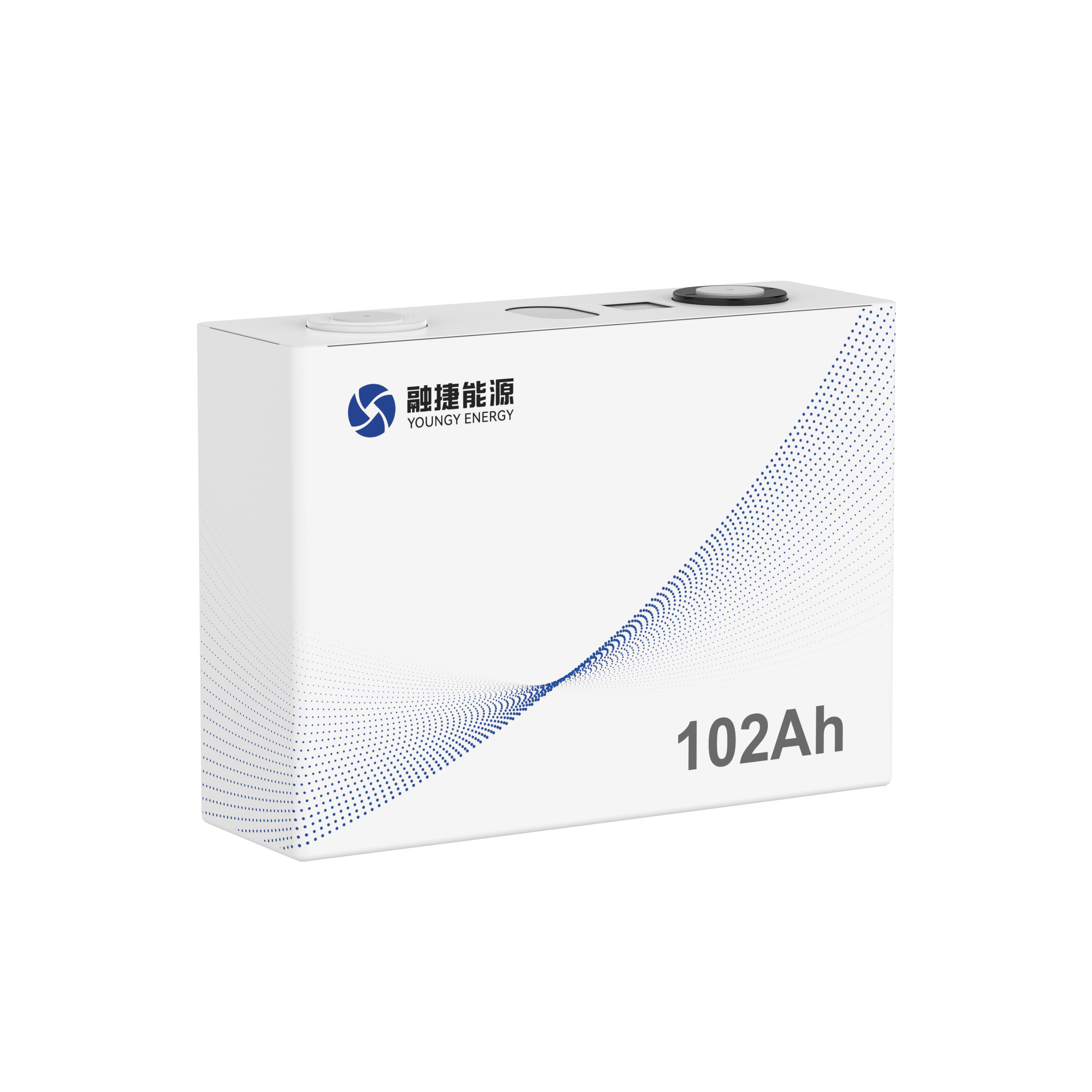

LFP102Ah

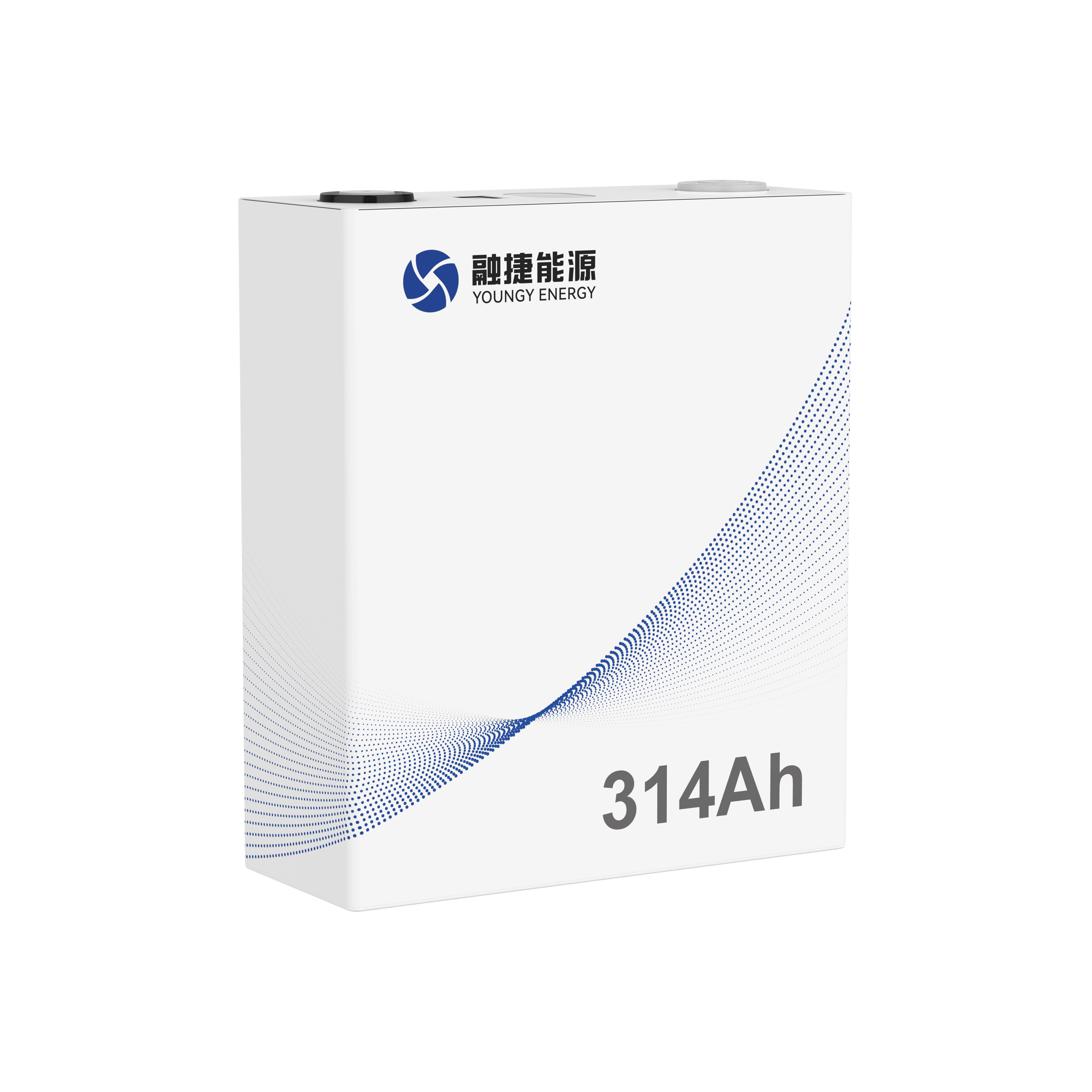

LFP314Ah-0.5P

LFP314Ah-0.5P

LFP588Ah

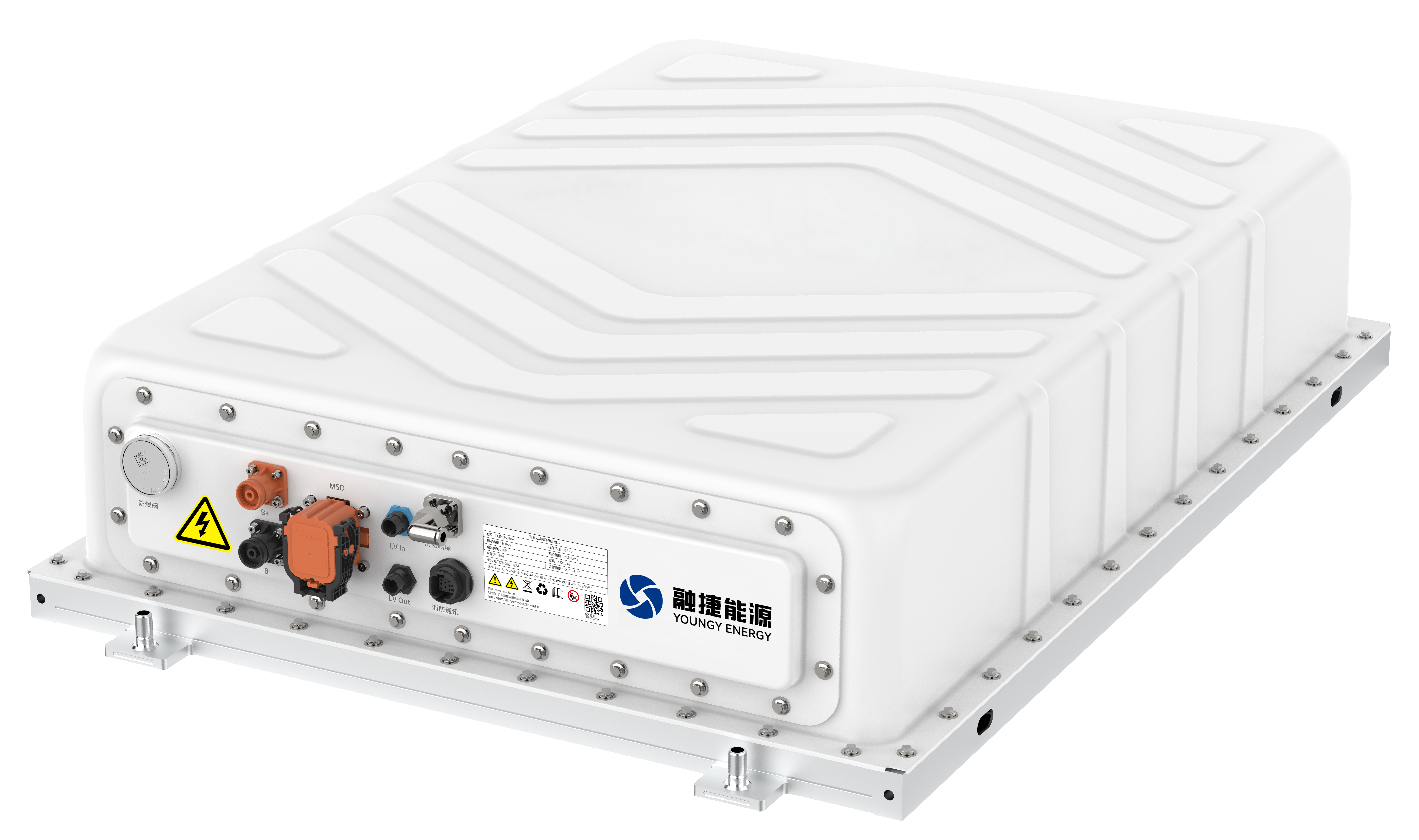

ESS Pack

Voltage Range130.0~189.8V

Cell Capacity314Ah

Dimension(W*D*H)1127*800*240mm

Configuration1P52S

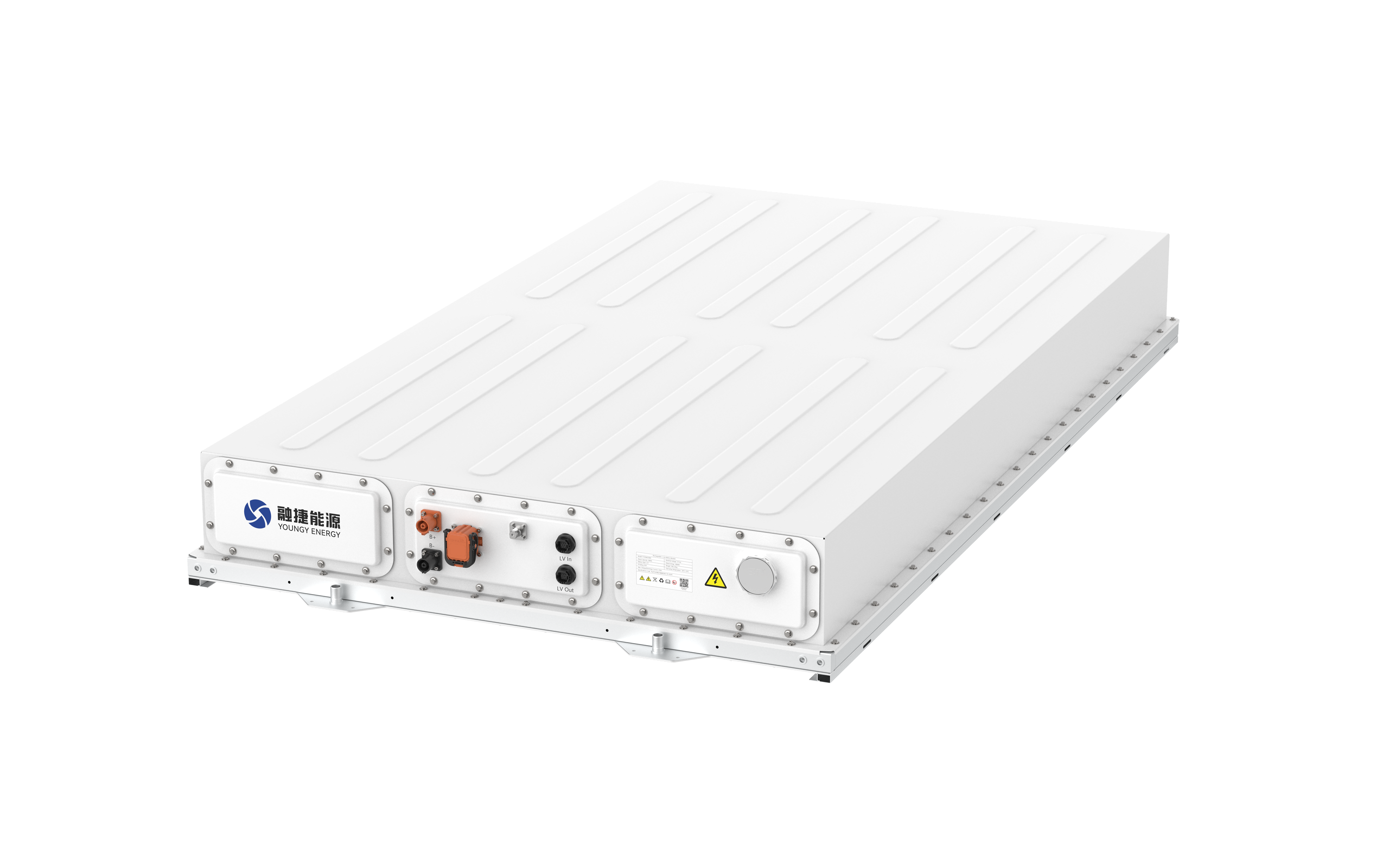

ESS Pack

PL1P104S104A1/B1

Voltage Range260.0~379.6V

Cell Capacity314Ah

Dimension(W*D*H)2200*800*245mm

Configuration1P104S

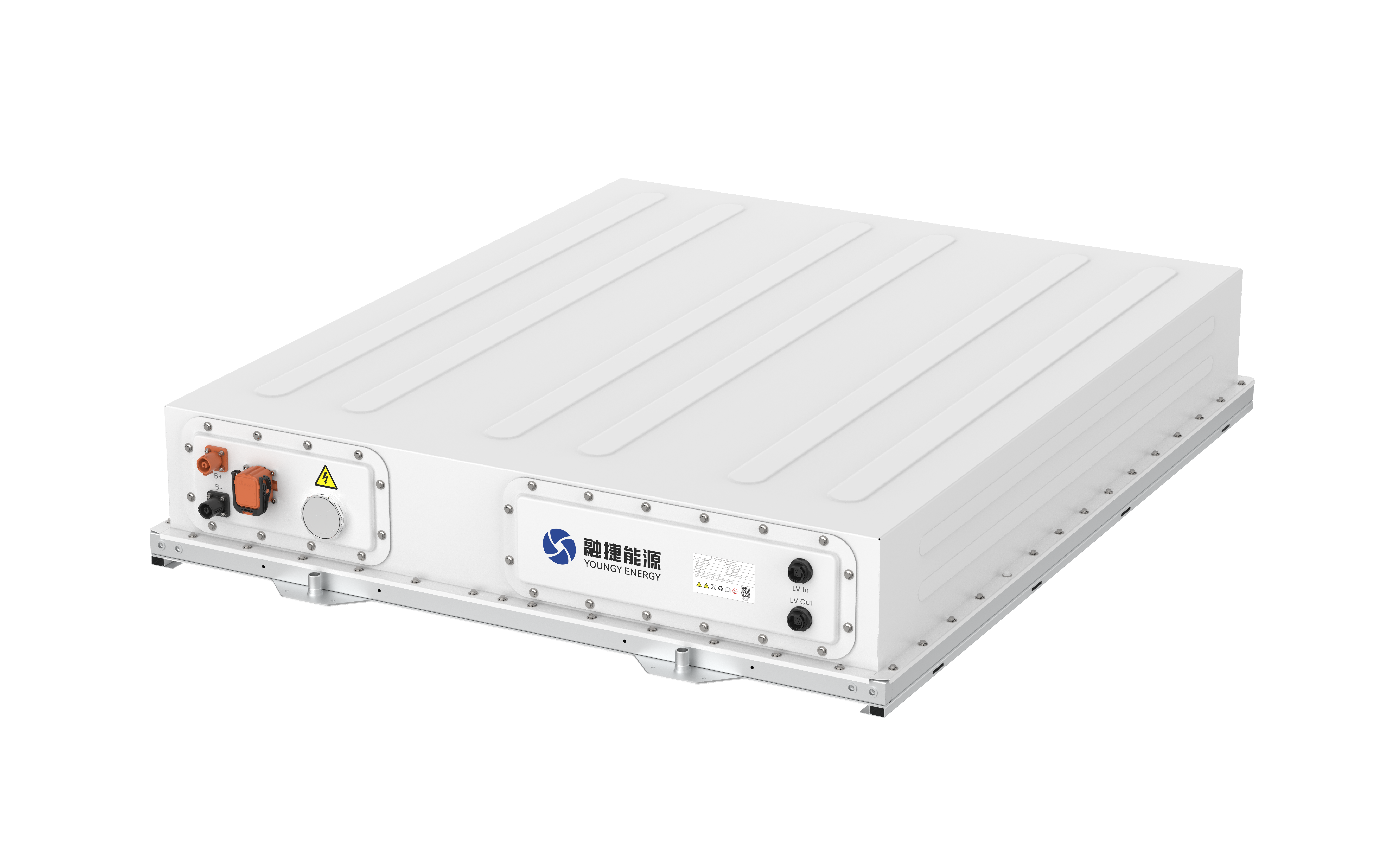

ESS Pack

Voltage Range170.0~248.2V

Cell Capacity588Ah

Dimension(W*D*H)1534*1258*260mm

Configuration1P68S

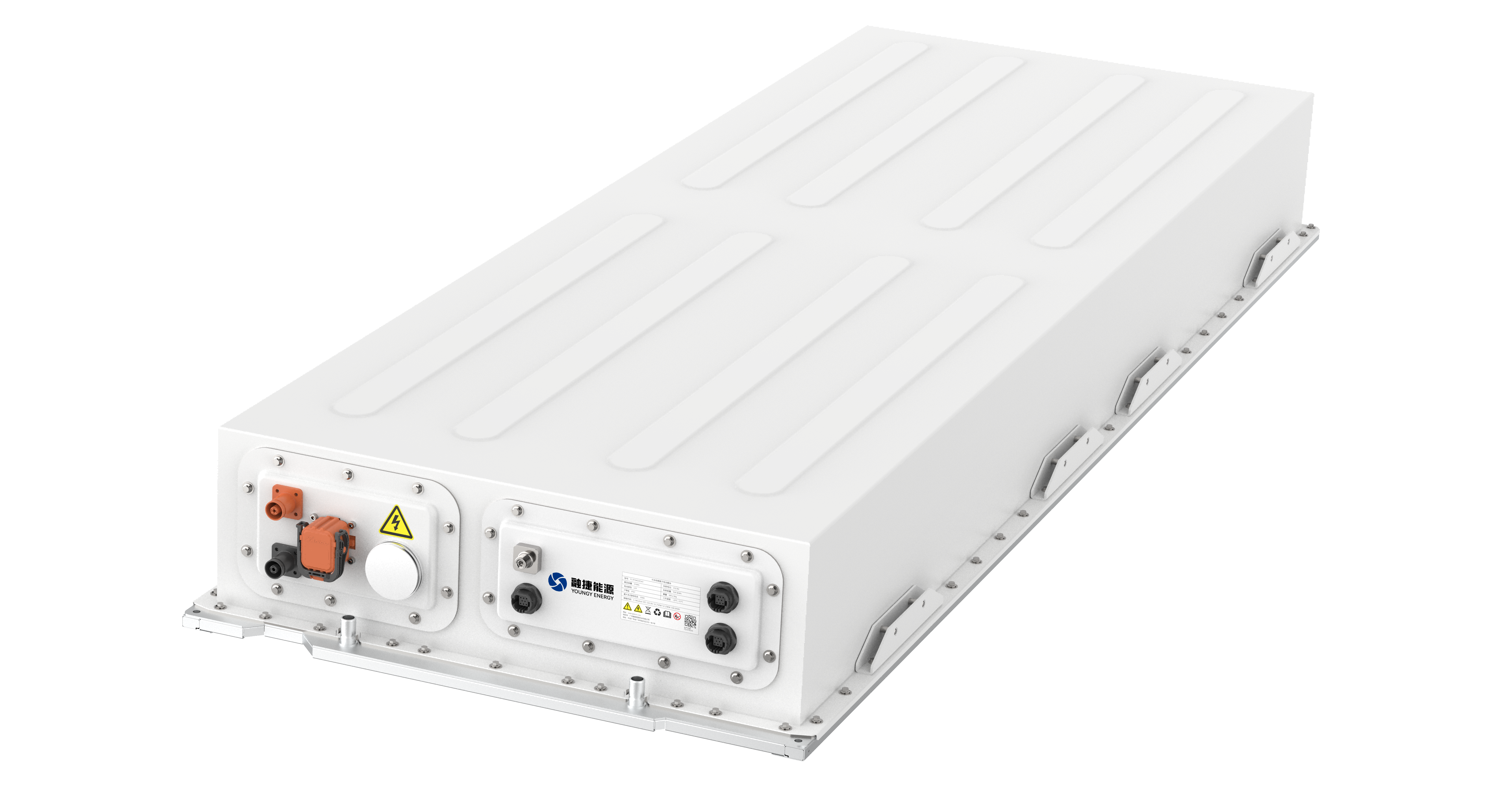

ESS Pack

Voltage Range260.0~379.6V

Cell Capacity588Ah

Dimension(W*D*H)2210*1250*260mm

Configuration1P104S

PL1P52S047A1

PL1P104S104A1/B1

PL1P68S128B1

PL1P104S128B1

Residential ESS
C&I ESS
Large-scale ESS

Residential ESS

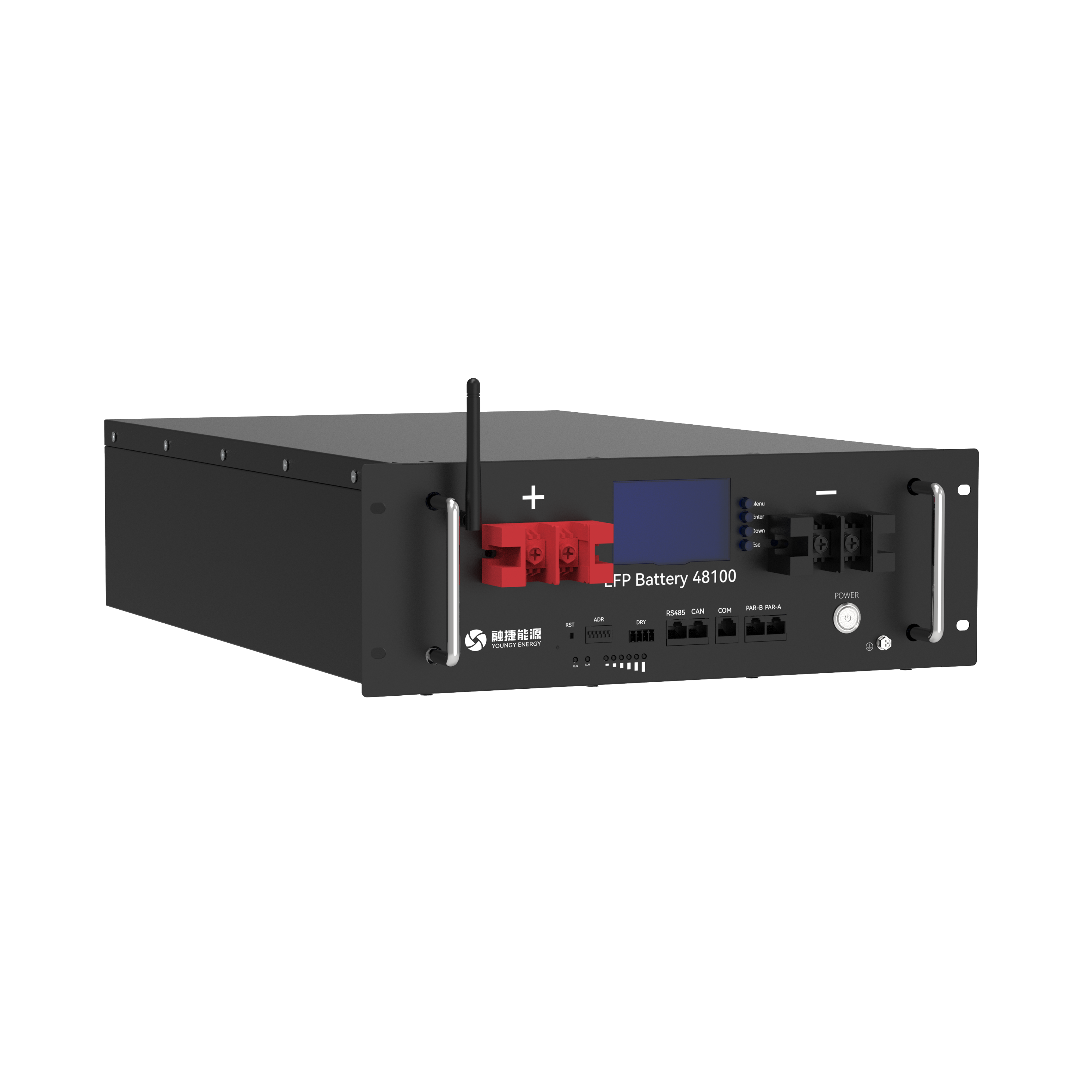

Low-voltage rack-mounted

Cell Capacity102Ah

Dimension (mm)358*583*132mm

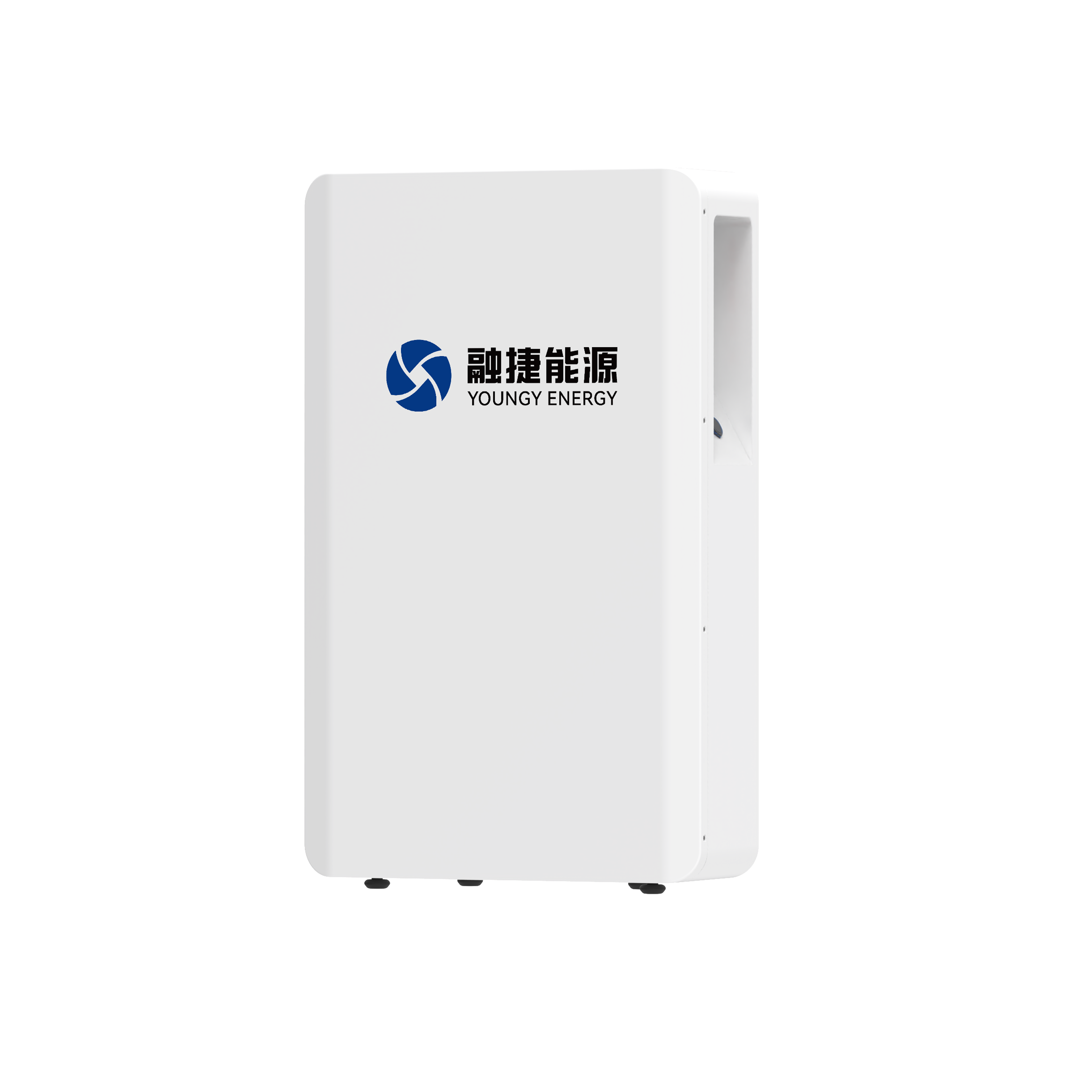

Residential ESS

Low-voltage wall-mounted

Cell Capacity102Ah

Dimension (mm)460*745*165mm

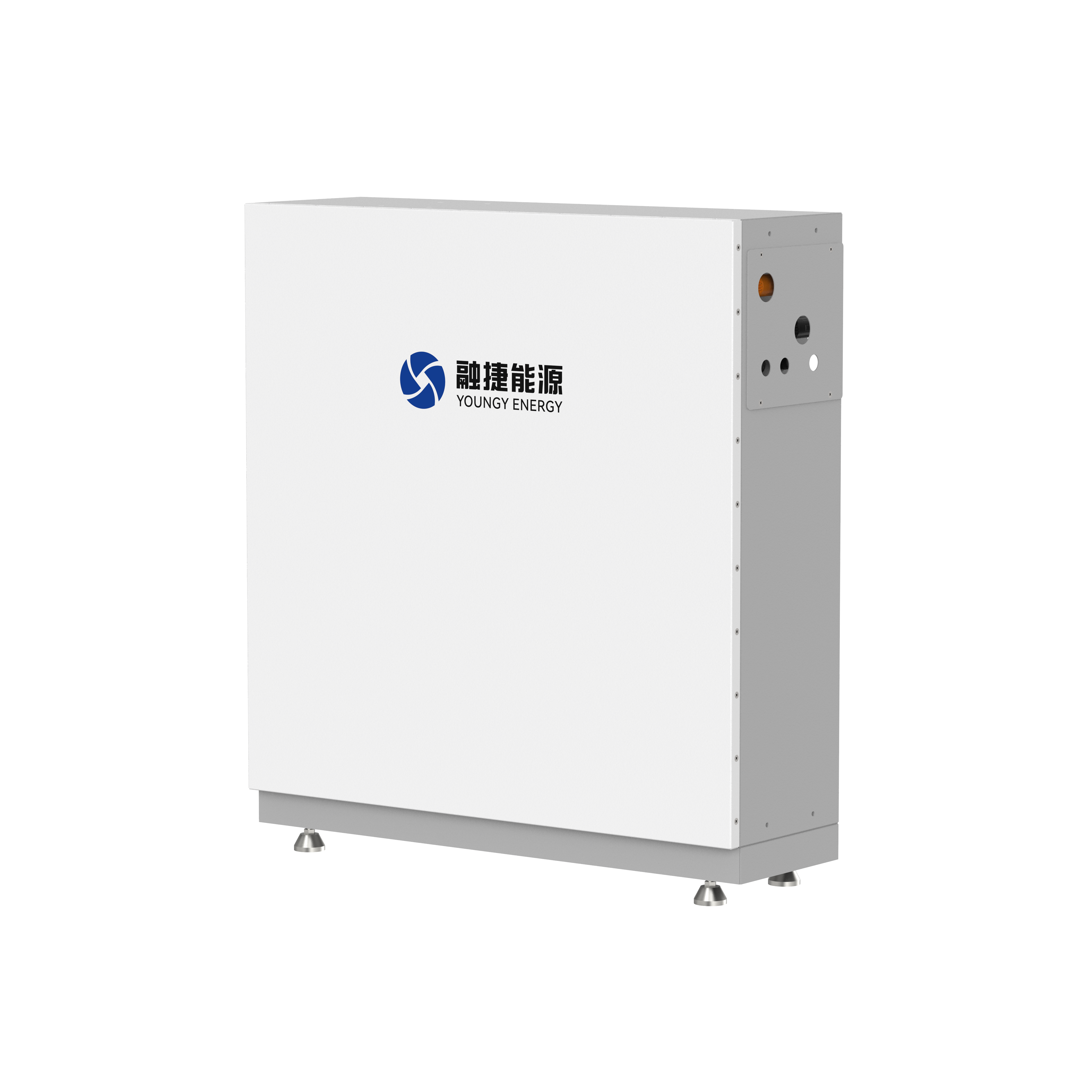

Residential ESS

Low-voltage floor-standing

Cell Capacity314Ah

Dimension (mm)750*750*235mm

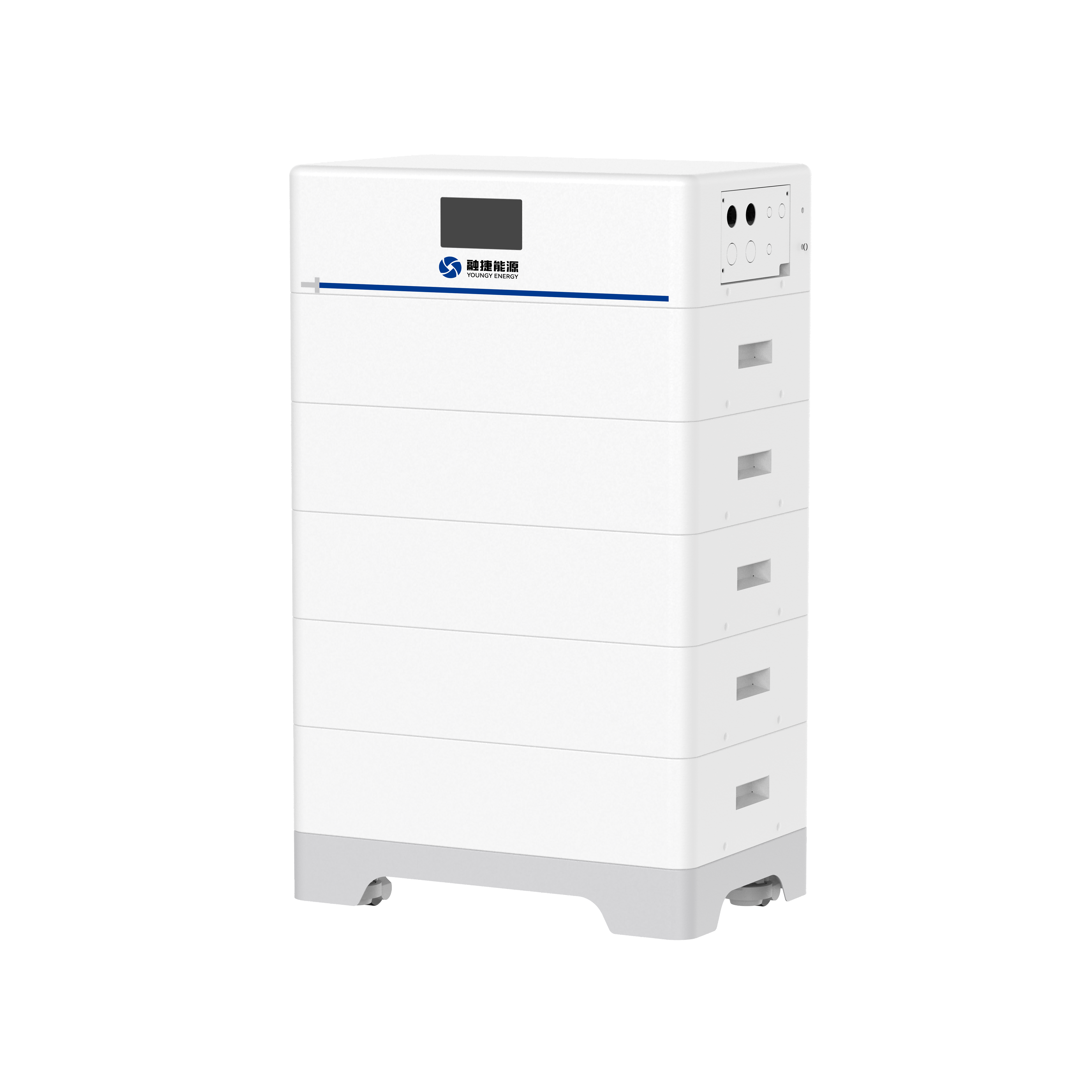

Residential ESS

High-voltage Stacked

Cell Capacity72Ah

Dimension (mm)600*380*1042mm

Low-voltage rack-mounted

Low-voltage wall-mounted

Low-voltage floor-standing

High-voltage Stacked

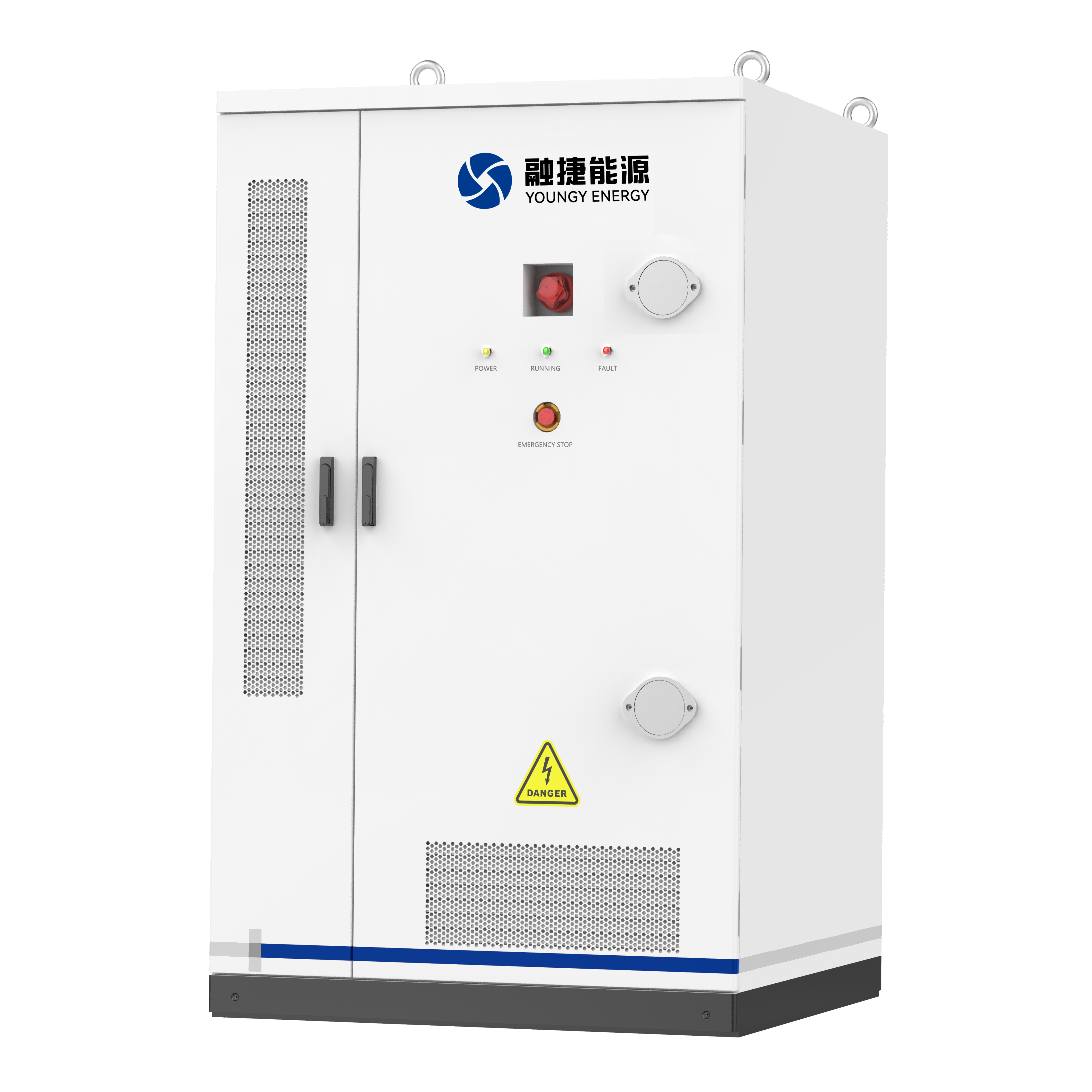

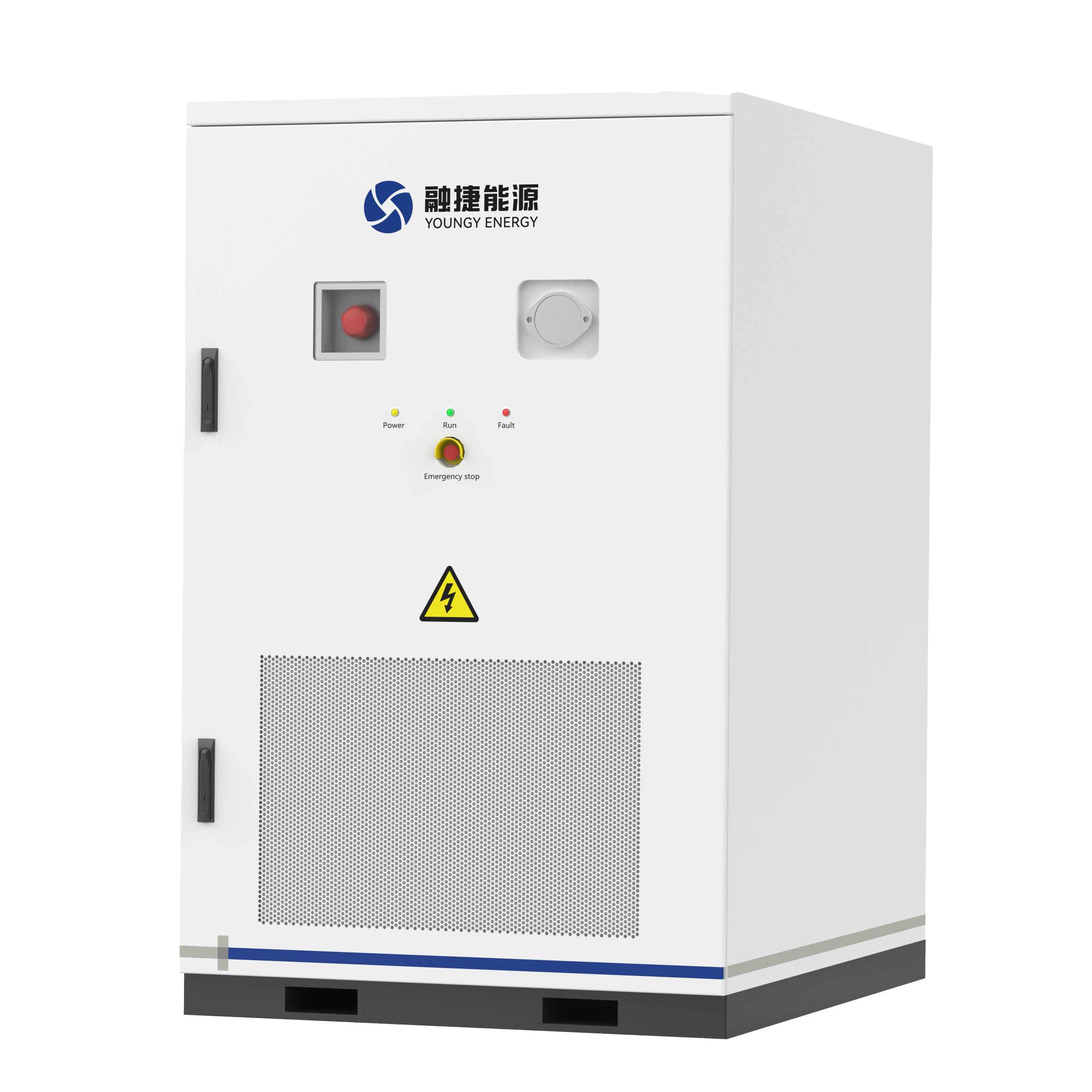

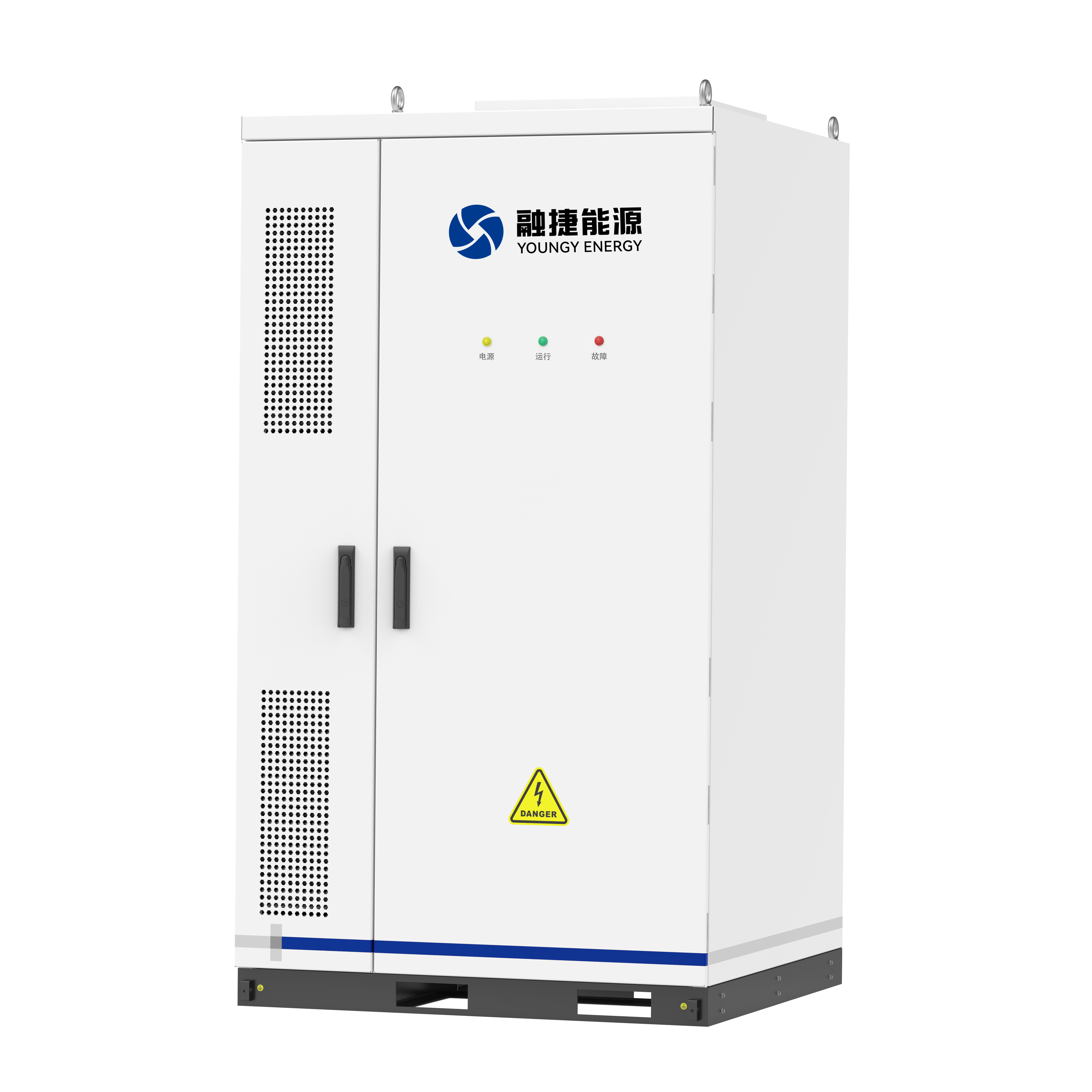

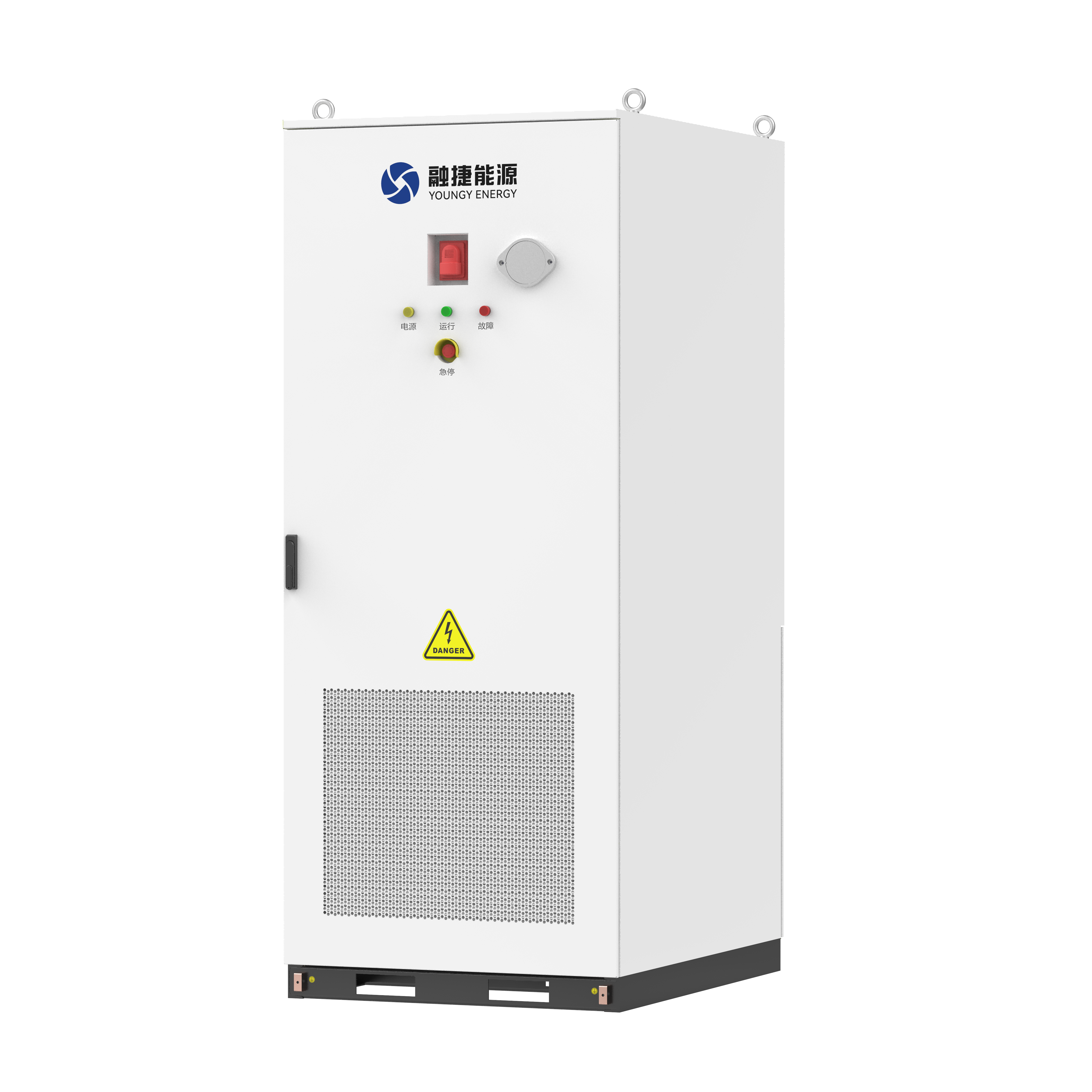

C&I ESS

Configuration1P260S

Cooling StrategyLiquid Cooling

Dimension1330*1350*2150mm

C&I ESS

Configuration1P260S

Cooling StrategyLiquid Cooling

Dimension1000*1350*2350mm

C&I ESS

Configuration1P416S

Cooling StrategyLiquid Cooling

Dimension1313*1300*2402mm

C&I ESS

Configuration1P272S

Cooling StrategyLiquid Cooling

Dimension1458*2000*2350mm

250kWh

261kWh

400kWh

512kWh

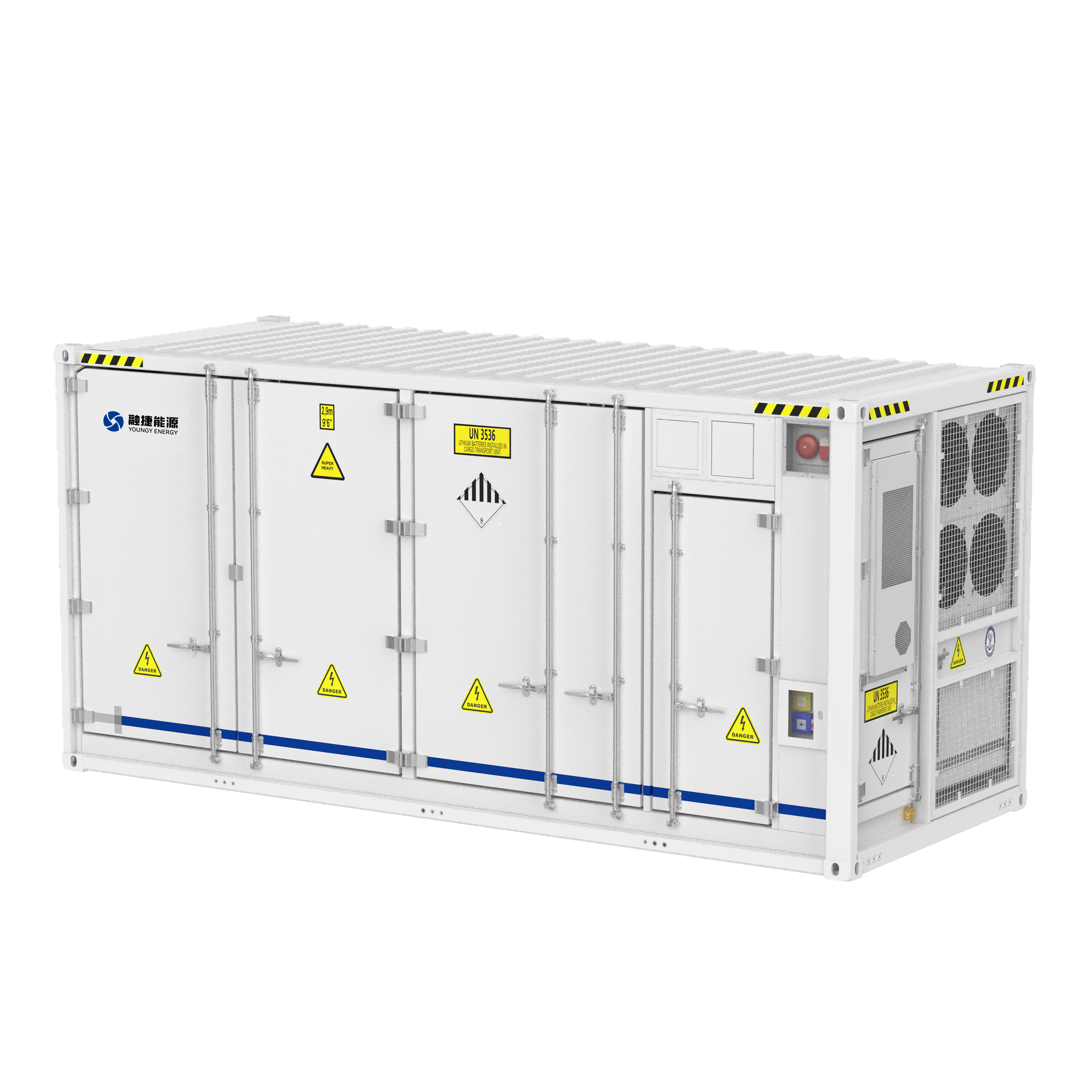

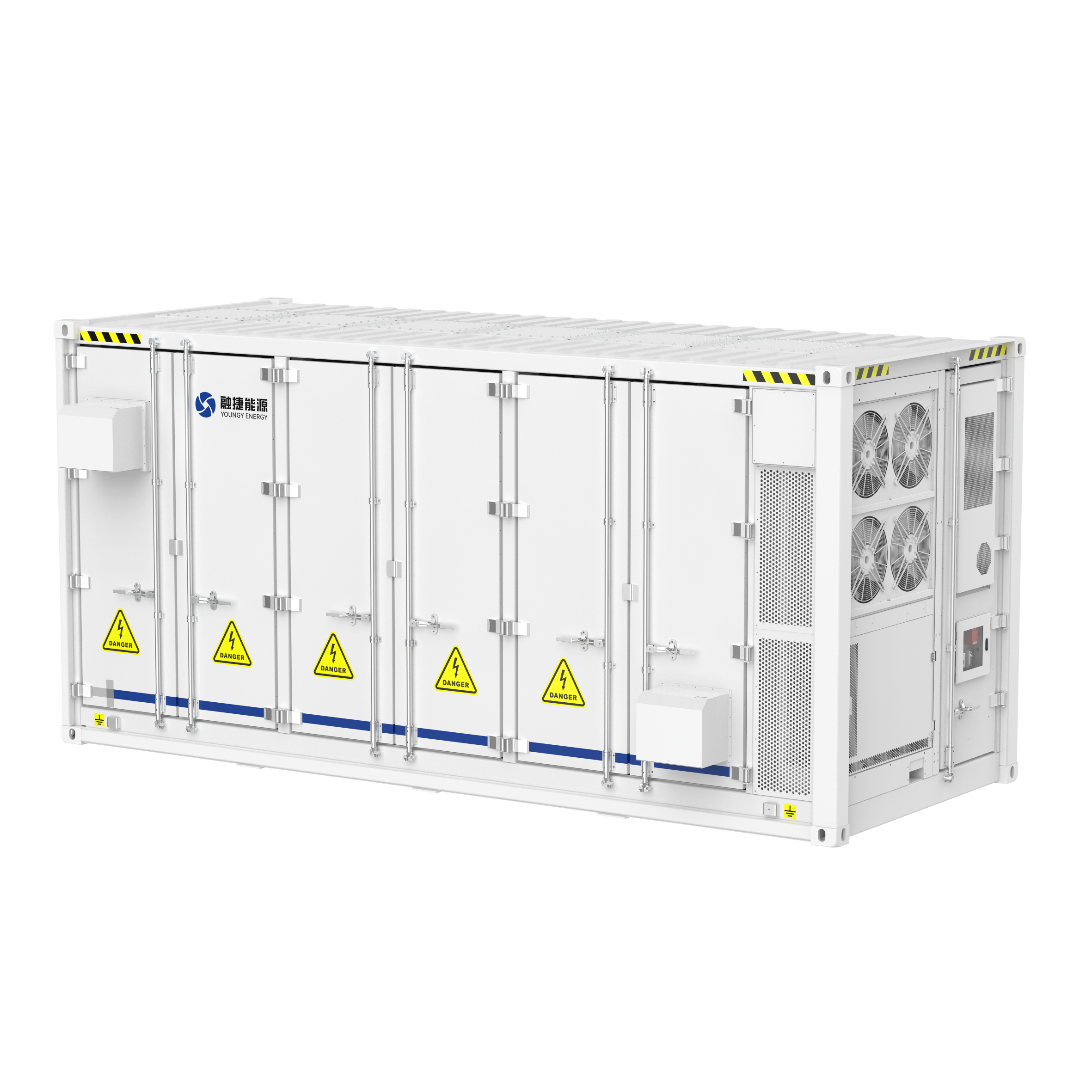

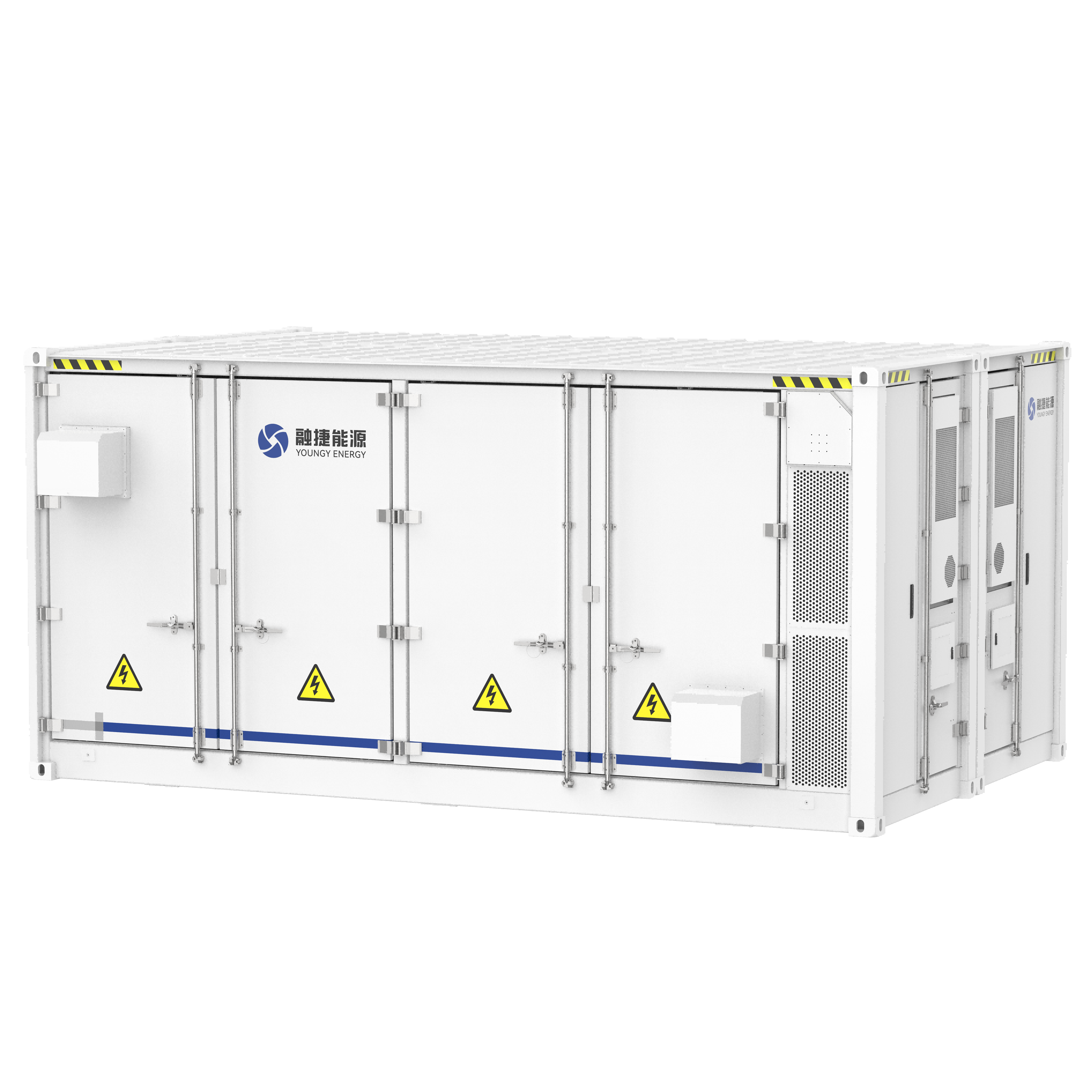

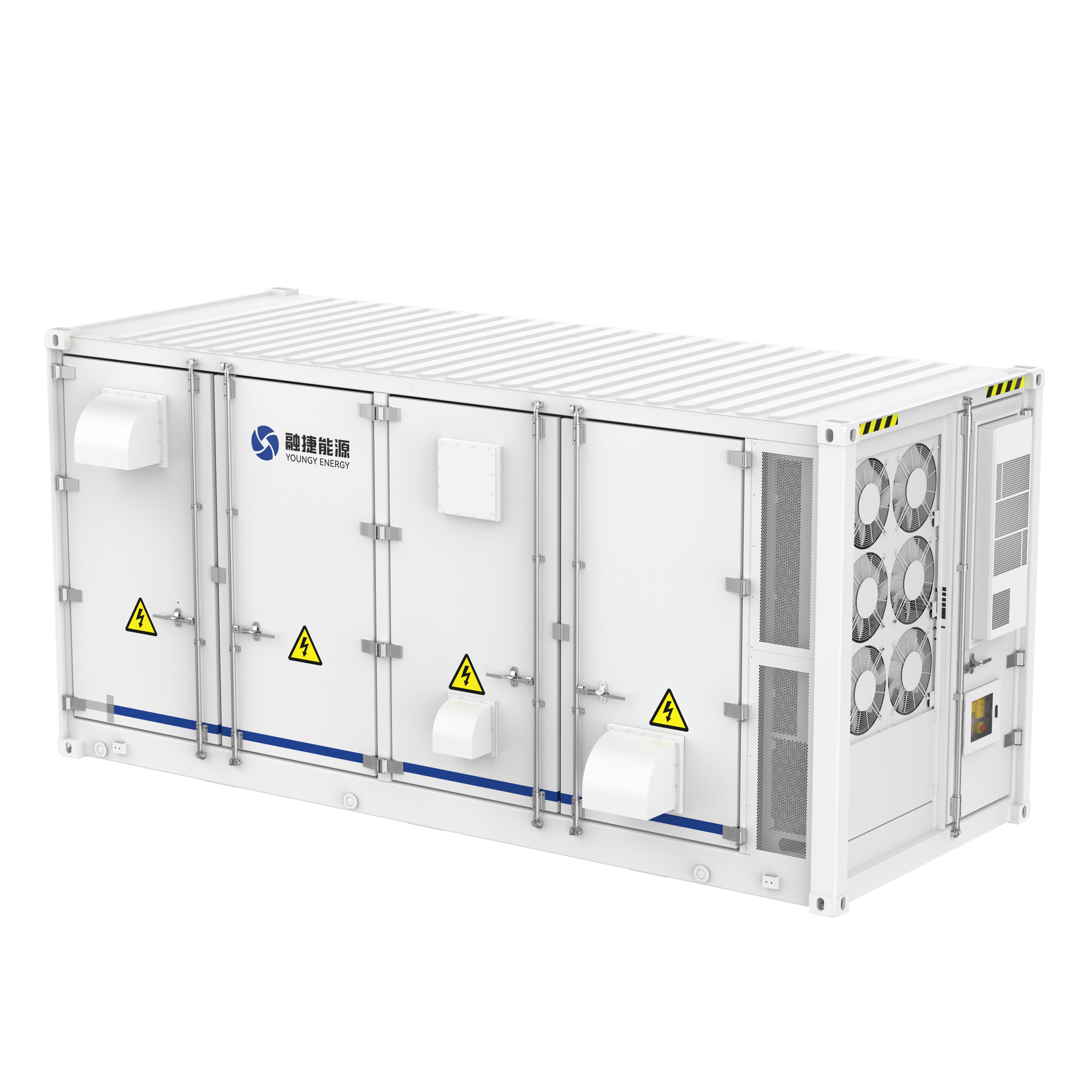

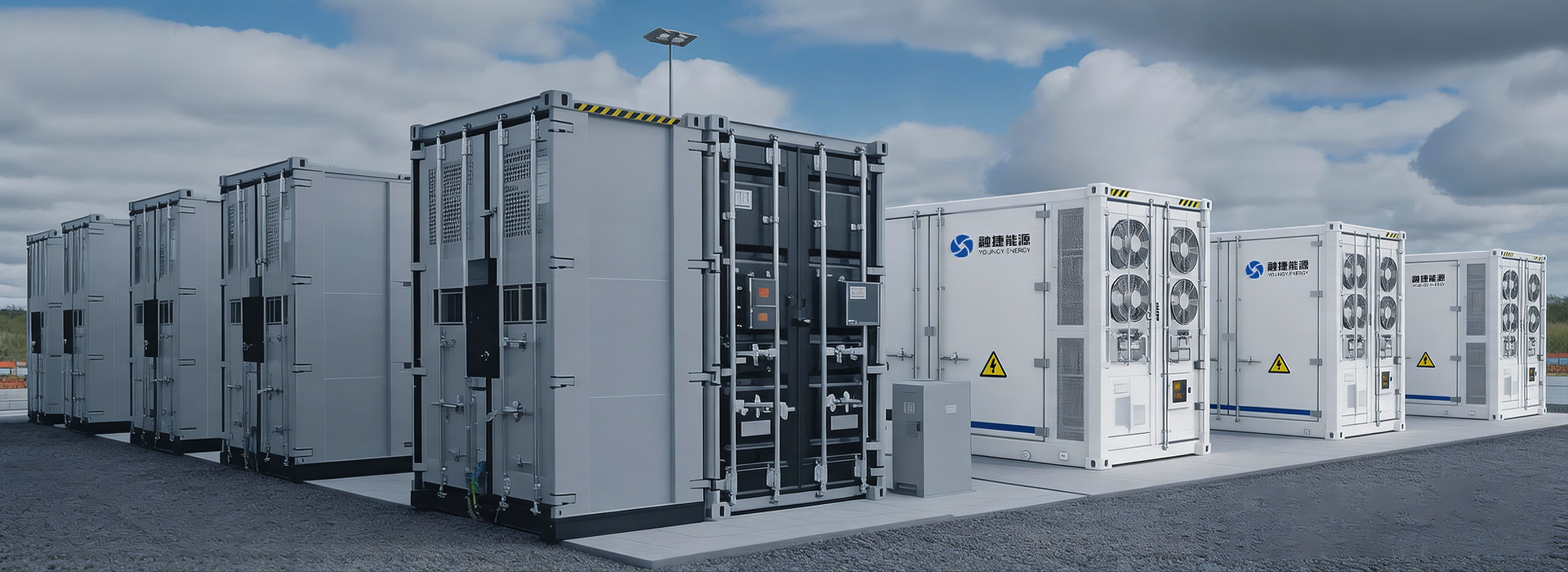

Large-scale ESS

Configuration10P416S

Cooling Strategy Liquid Cooling/Liquid Heating

Dimension6058*2438*2896 (20HQ)

Large-scale ESS

Configuration12P416S

Cooling Strategy Liquid Cooling/Liquid Heating

Dimension6058*2438*2896 (20HQ)

Large-scale ESS

Configuration8P416S

Cooling Strategy Liquid Cooling/Liquid Heating

Dimension6058*2438*2896 (20HQ)

Large-scale ESS

Configuration8P416S

Cooling Strategy Liquid Cooling/Liquid Heating

Dimension6058*2438*2896 (20HQ)

Large-scale ESS

Configuration2-6P408S

Cooling Strategy Liquid Cooling/Liquid Heating

Dimension5900*3800*3500mm

4MWh

5MWh

6.25MWh

6.26MWh

9.2MWh
